Sending commands to Quecklink Devices via Mprofiler Unit command Service Task.
Step 1:
1.1) Logins to MProfiler.....
1.2.) Navigation on MProfiler....
1.3) Selection function (Unit Command Services Tasks).....
Step 2:
2.1) Quecklink device connection.....
2.2) Directory of Quecklink configurator....
2.3) Example of setting Digital Output port settings......
2.4) Sending command on MProfiler......
Step 1:
1.)> Log on to MProfiler
2.)> Navigate to the correct reseller

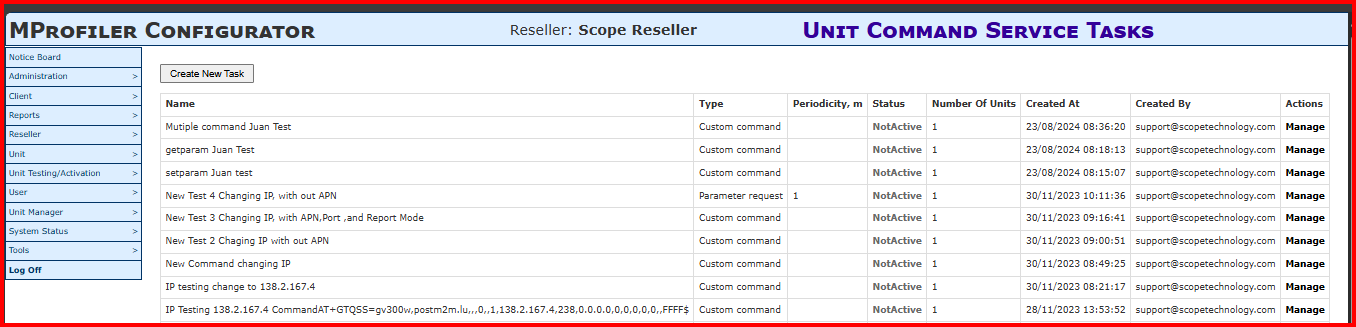

3)> Select Unit Manager> Unit Command Service (Once you are in the page, it will look as follows on the image below).
>Step 2:
2.1) With your Quecklink Device> Set up the device on your PC/Machine by powering up the device using a power supply and connecting the device to you PC/Machine using the (Data Cable) which is a USB cable to be able to connect to the device.

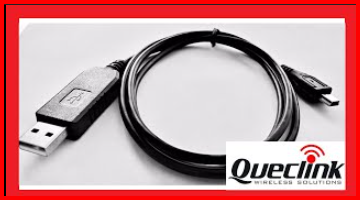

Below is a screen shot of the Data Cable used for the Quecklink device.
2.2) > Once you have the Quecklink device connected and powered up, open the Quecklink configurator as shown on the image below.
> The process used in order to send commands or change parameters on the Quecklink devices is by send the complete command.
>Firstly, you require to have the configuration of the device open on the Quecklink configurator as seen below on the screen shot. (Note that you may open a configuration without having the device connected but note that it must be the same config that the device is currently running at the time.
See below on the image where the command is highlighted in yellow, this is where the command will be copied after the changes are made and used on Mprofiler Unit command Service Task to send the commands to the device.
Please be advised that on the configurator pages that are listed on the config tool the command shown belongs to that specific page. As an example, shown below where a demonstration will be shown what happens when changes are made on the parameter in which the command will also change.
2.3) Example of setting Digital Output port settings.

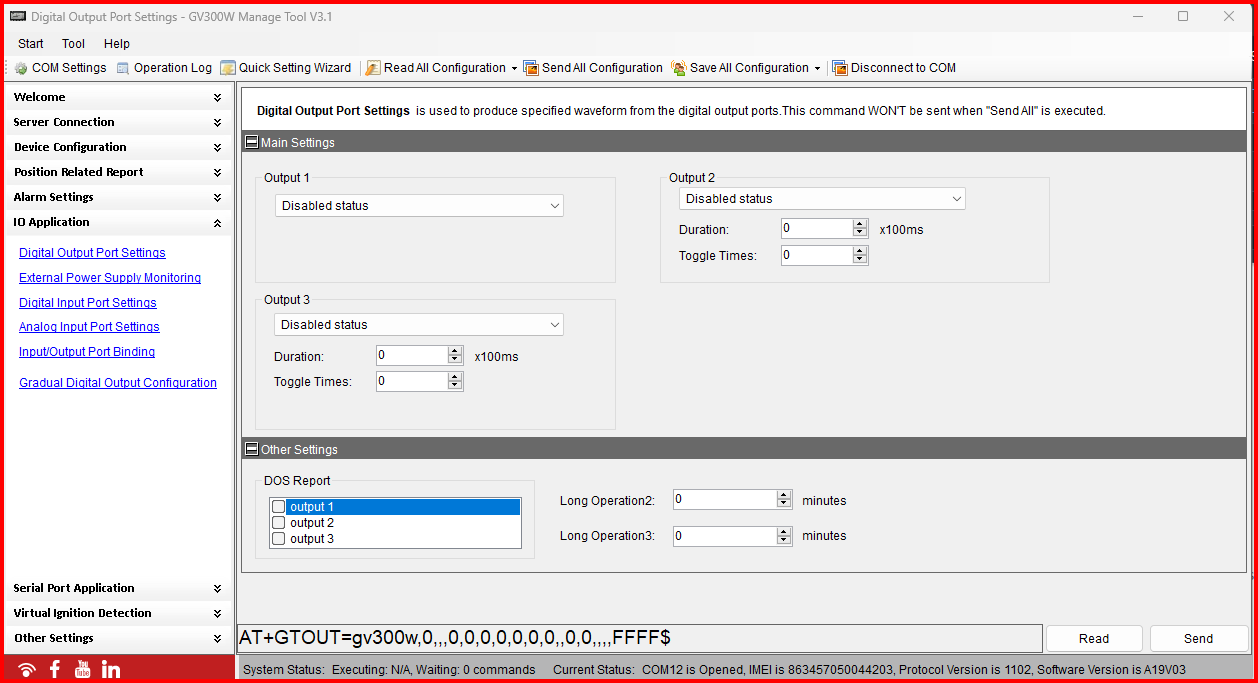

As seen below on the image that all the outputs are currently disabled, which the command for those parameters are all on zero values (AT+GTOUT=gv300w,0,,,0,0,0,0,0,0,0,,0,0,,,,FFFF$)

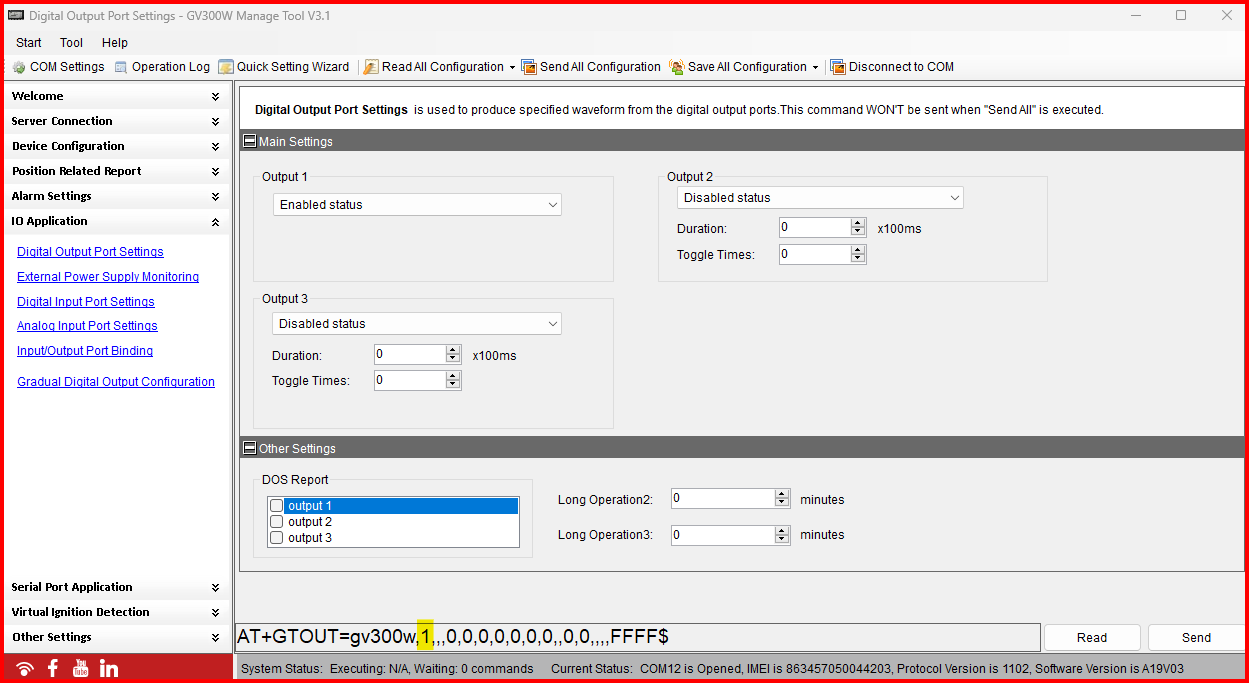

We are now going to be setting the parameter for Digital Output 1 to be set to enabled, note that when the Output 1 was enabled and the value on the command changed from being a 0 to a 1 (AT+GTOUT=gv300w,1,,,0,0,0,0,0,0,0,,0,0,,,,FFFF$)
As seen below where the value 1 is highlighted in yellow.
2.4) Once you changed the parameter to the value required, copy the command without any spaces (AT+GTOUT=gv300w,1,,,0,0,0,0,0,0,0,,0,0,,,,FFFF$) and saved the command on your note pad++ as this command will be used to send it vis Mprofiler.

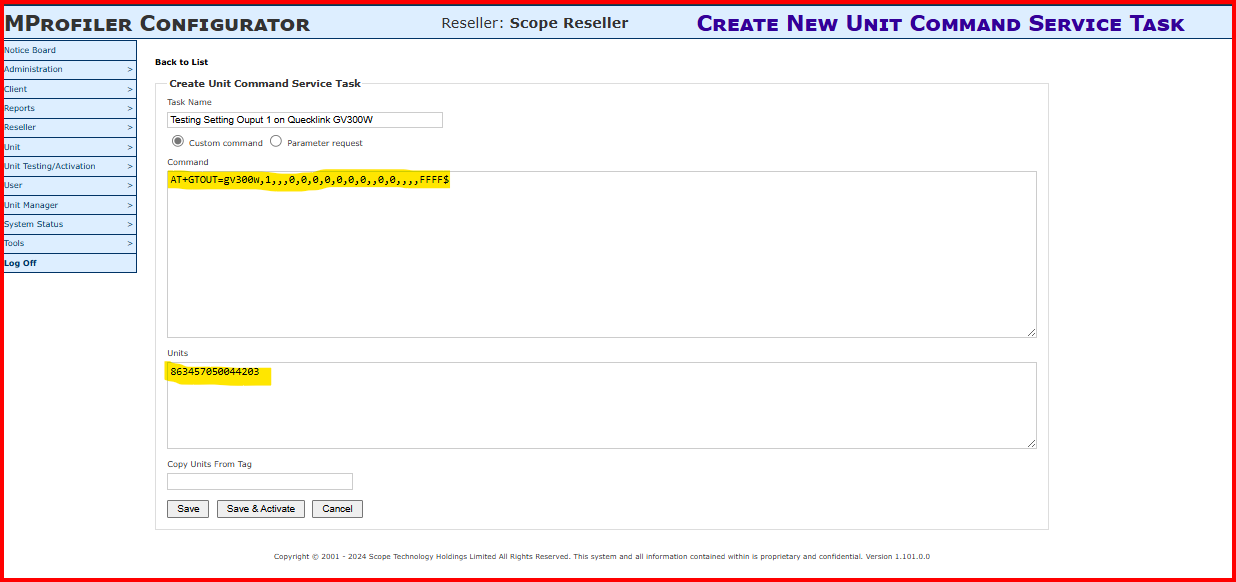

As per the screen shot below the command was created by pasting the full command copied and also adding the device that required to have the Output 1 enabled, click on Save and Activate and the command will be sent to the device.
Once the command has been sent you are able to see the info that the command has been sent
